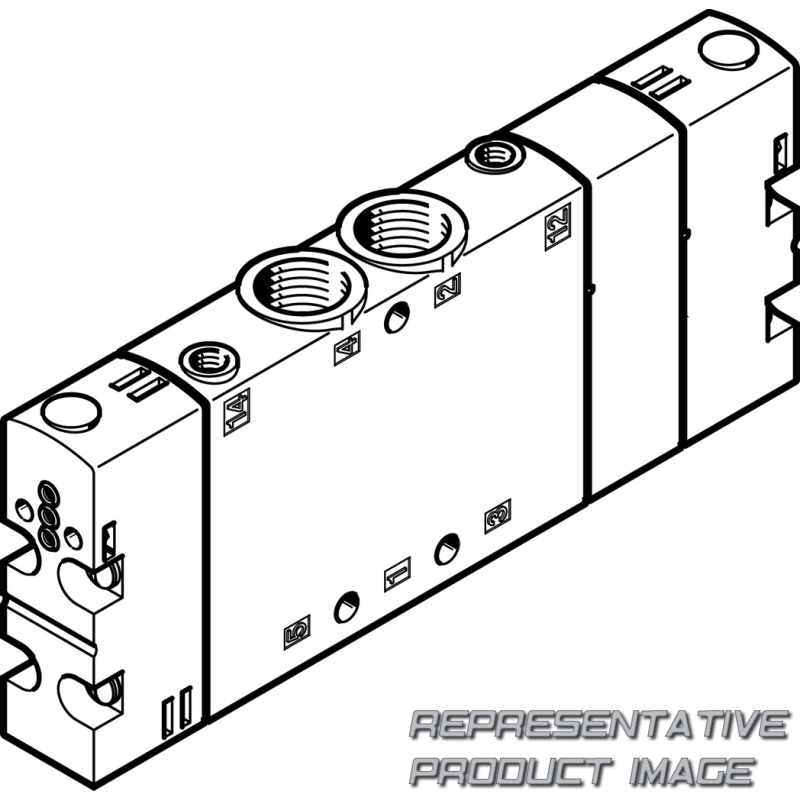

FESTO 550161 basic valve

Name: 550161 FESTO
Brand: FESTO
SKU: 756426-en-eur
Price: 179.99 EUR
Availability: SoldOut

CPE18-P1-5/3B-1/4

179.99 €

Limited stock only available on quotation

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (18)	18 mm
Nominal operating voltage	None
Electrical connection (P1)	Interface for pilot valve size 15 mm to ISO 15218 (CNOMO)

Valve function (5/3B)	5/3-way valve, mid-position pressurised
Pilot air	Internal
Pneumatic connection (1/4)	G1/4
Generation	None

Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. negative test pulse with 1 signal		3.100 µs
Duty cycle		100%
Switching time off		34 ms
Valve position code		Inscription label holder
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Maritime classification		See certificate
Design		Piston gate valve
pneumatic working port		G1/4
Construction width		18 mm
Valve function		5/3-way, pressurised
Material seals		NBR
Pneumatic connection, port 5		G1/4
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/4
Pilot air port 12		M5
Pilot exhaust port 82		M5

Product weight		200 g
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. positive test pulse with 0 signal		3.300 µs
Switching time on		20 ms
lap		Positive overlap
Symbol		00991034
Pilot air supply		Internal
Manual override		Non-detenting
Sealing principle		Soft
Nominal size		8 mm
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Type of reset		Mechanical spring
Operating pressure		2,5 bar ... 10 bar
Standard nominal flow rate		1.300 l/min
Type of actuation		Via pilot interface to ISO 15218
Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G1/4
Pneumatic connection, port 2		G1/4
Pilot air port 14		M5
Pilot exhaust port 84		M5
