FESTO 535974 solenoid valve

Name: 535974 FESTO
Brand: FESTO
SKU: 756291-en-eur
Price: 303.14 EUR
Availability: InStock

MFH-5/3G-D-3-S-C-EX

303.14 €

available with 3 to 4 week lead time shipping to United States

Specifications

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 2		Sub-base size 3 to ISO 5599-1
Pilot air port 14		Sub-base size 3 to ISO 5599-1
Pilot exhaust port 84		M5
Type of mounting		On sub-base Via through-hole and screw
Product weight		1.040 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature		-10 °C ... 60 °C
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. negative test pulse with 1 signal		3.700 µs
Switching time on		36 ms
Pilot pressure		3 bar ... 10 bar
Symbol		00991076
Pilot air supply		External
ISO code		369
Conforms to standard		ISO 5599-1
Sealing principle		Soft
Grid dimension		71 mm
Degree of protection		IP65
Explosion ambient temperature		-5°C <= Ta <= +40°C
Explosion ignition protection type for gas		Ex h IIC T4 Gb
ATEX category gas		II 2G
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Design		Piston gate valve
Operating voltage		Via solenoid coil, must be ordered separately
Standard nominal flow rate		4.100 l/min
Type of actuation		Electric

Material seals		HNBR NBR
Pneumatic connection, port 5		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 3		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 1		Sub-base size 3 to ISO 5599-1
Pilot air port 12		Sub-base size 3 to ISO 5599-1
Pilot exhaust port 82		M5
Electrical connection		Via F coil, to be ordered separately
Ambient temperature		-5 °C ... 40 °C
Sound pressure level		85 dB(A)
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Max. positive test pulse with 0 signal		2.200 µs
Switching time off		77 ms
lap		Positive overlap
Flow direction		Reversible
Type of piloting		Pilot actuated
Manual override		Detenting via accessory Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		14,5 mm
Explosion protection certification outside the EU		EPL Db (GB) EPL Gb (GB)
Explosion ignition protection type for dust		Ex h IIIC T105°C Db
ATEX category dust		II 2D
CE marking (see declaration of conformity)		To UK EX instructions
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 16 bar
pneumatic working port		Sub-base size 3 to ISO 5599-1 G1/2
Construction width		65 mm

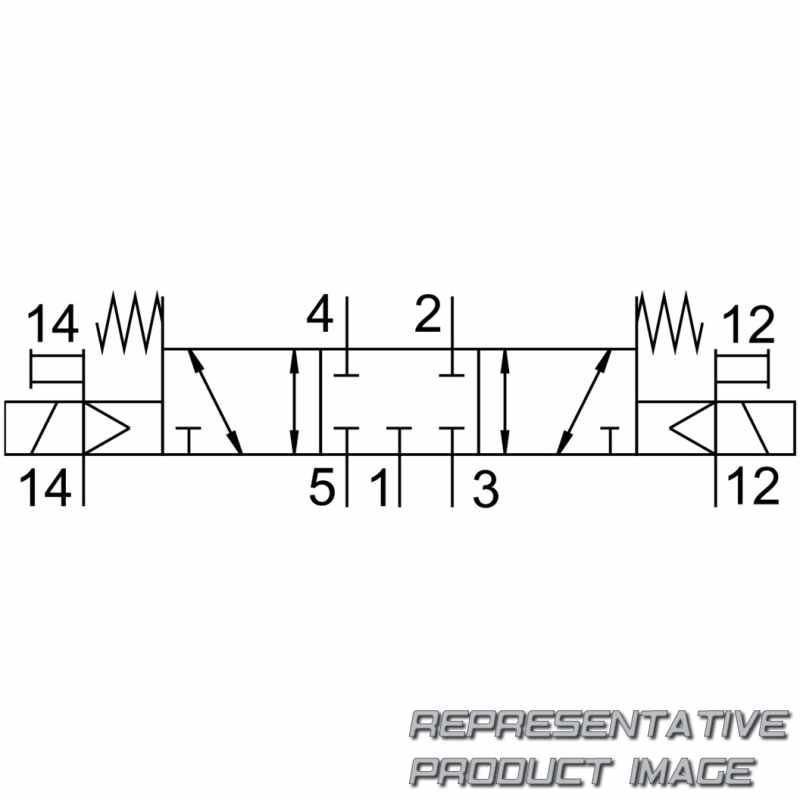

Valve function		5/3 closed
