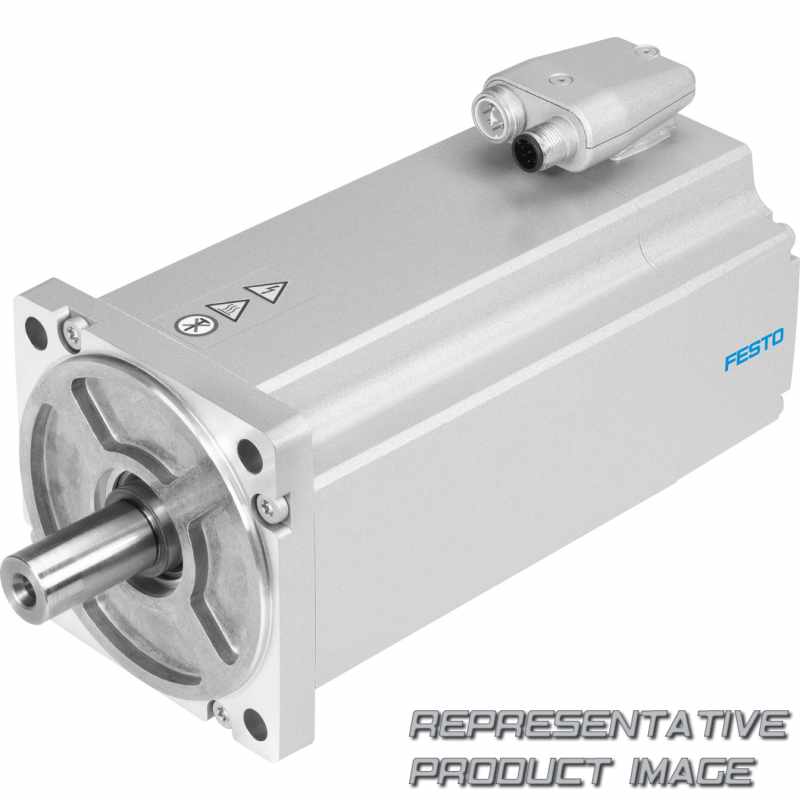

FESTO 4267596 servo motor

Name: 4267596 FESTO
Brand: FESTO
SKU: 756294-en-eur
Price: 1658.57 EUR
Availability: SoldOut

EMME-AS-100-S-HS-AMX

1,658.57 €

Limited stock only available on quotation

Specifications

Winding (HS)	High voltage, standard
Electrical connection (A)	Angled plug
Measuring unit (MX)	Absolute safety encoder, multi-turn, Hiperface
Brake	None

Energy efficiency		ENEFF (CN) / Class 2
Duration of use Tm, subcomponent		20 years, rotor position sensor
Performance Level, subcomponent		Category 3, performance level d, rotor position encoder
Rot. pos. enc., typ. ang. acc.		20 arcmin
Rotor pos. enc., sin/cosin p/r		128
Rotor position encoder interface		HIPERFACE®
Permissible radial shaft load		650 N
Product weight		6.250 g
Phase-phase winding inductance		15,5 mH
Voltage constant, phase-to-phase		102,2 mVmin
Peak current		13,6 A
Continuous stall current		3,4 A
Max. rotational speed		3.910 rpm
Peak torque		22,4 Nm
Standstill torque		5,6 Nm
Type of winding switch		Star inside
Nominal operating voltage DC		565 V
Approval		RCM trademark c UL us - Recognized (OL)
Corrosion resistance class CRC		0 - No corrosion stress
Electrical connector system		Plug
Rating class as per EN 60034-1		S1
Conforms to standard		IEC 60034
Storage temperature		-20 °C ... 70 °C

Mean time to dangerous failure (MTTFd), subcomponent		874 years, rotor position sensor
PFHd, subcomponent		1.3 x 10E-8, rotor position sensor
Safety Integrity Level (SIL), subcomponent		SIL 2, rotor position sensor SILCL 2, rotor position sensor
Rotor pos. encoder, typ. res.		15 bit
Rotor position sensor, encoder measuring principle		Optical
Rotor position sensor		Absolute multi-turn safety encoder
Permissible axial shaft load		130 N
Total mass moment of inertia of output		4,84 kgcm²
Phase-phase winding resistance		4,6 Ohm
Motor constant		1,6 Nm/A
Nominal motor current		3 A
Nominal power rating of motor		1.500 W
Nominal rotary speed		3.000 rpm
Nominal torque		4,8 Nm
Number of pole pairs		3
Nominal voltage DC		565 V
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive
LABS (PWIS) conformity		VDMA24364 zone III
Note on materials		RoHS-compliant
Degree of protection		IP21
Insulation protection class		F
Relative air humidity		0 - 90%
Ambient temperature		-10 °C ... 40 °C
