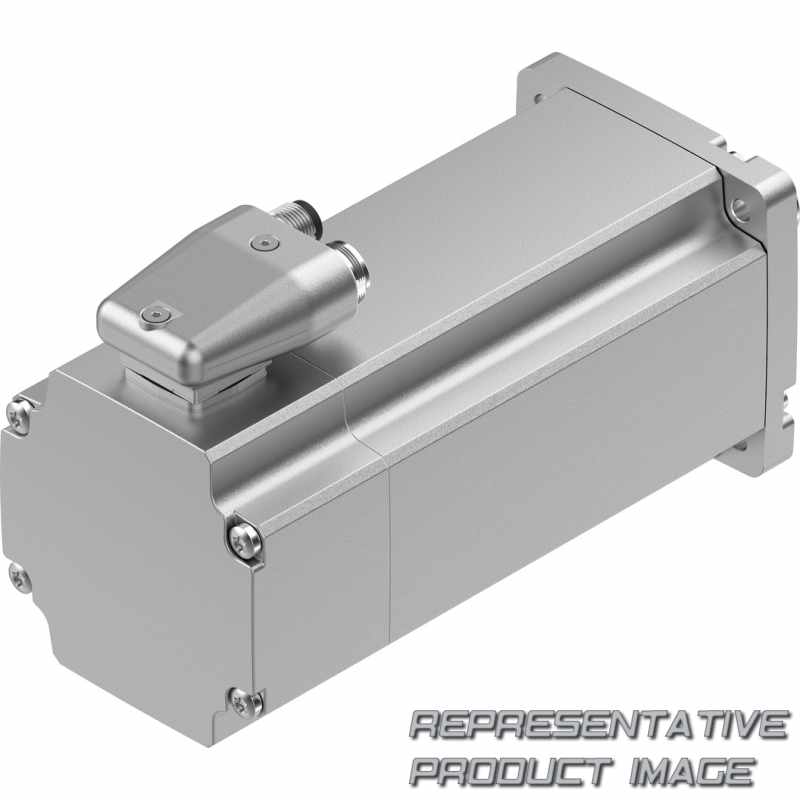

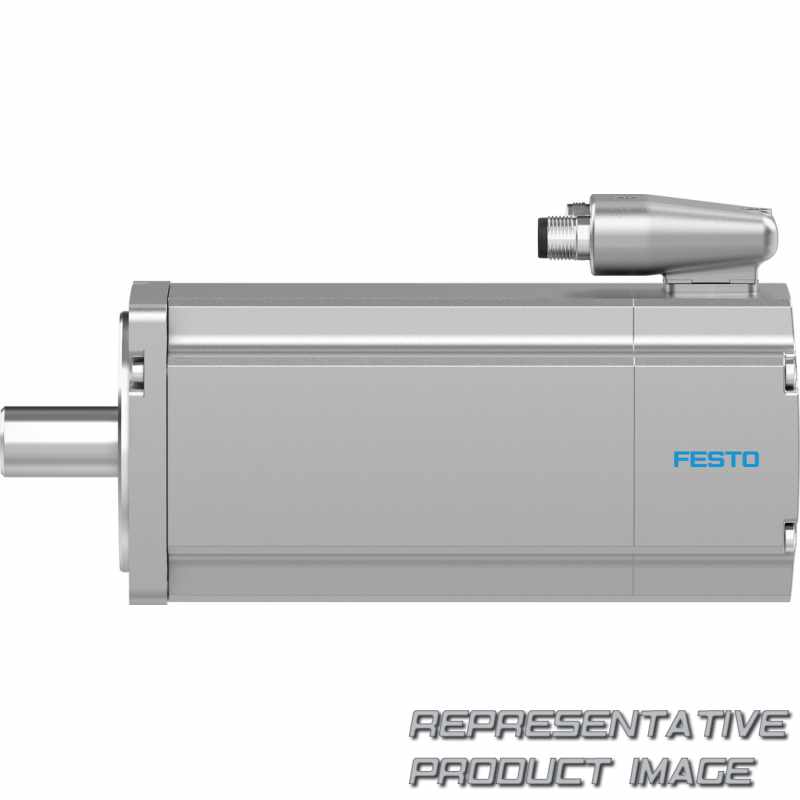

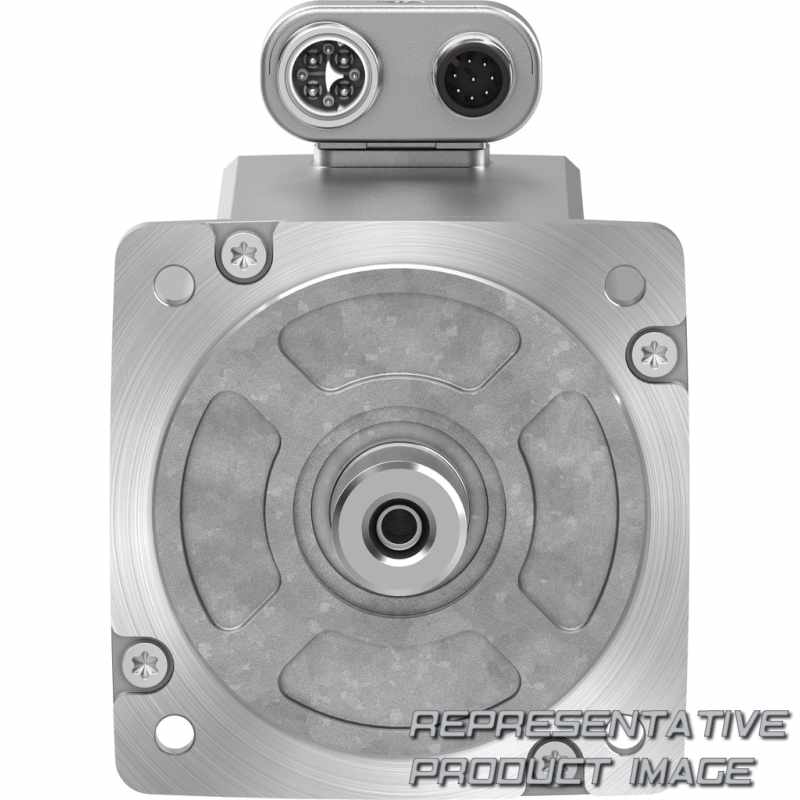

| Energy efficiency | ENEFF (CN) / Class 2 | ||
| Duration of use Tm, subcomponent | 20 years, rotor position sensor | ||
| Performance Level, subcomponent | Category 3, performance level d, rotor position encoder | ||
| Rot. pos. enc., typ. ang. acc. | 20 arcmin | ||
| Rotor pos. enc., sin/cosin p/r | 128 | ||
| Rotor position encoder interface | HIPERFACE® | ||
| Permissible radial shaft load | 360 N | ||
| Product weight | 3.700 g | ||
| Phase-phase winding inductance | 22,8 mH | ||
| Voltage constant, phase-to-phase | 97,5 mVmin | ||
| Peak current | 8,8 A | ||
| Continuous stall current | 2,2 A | ||
| Max. rotational speed | 4.097 rpm | ||
| Peak torque | 14 Nm | ||
| Standstill torque | 3,5 Nm | ||
| Type of winding switch | Star inside | ||
| Nominal operating voltage DC | 565 V | ||
| Approval | RCM trademark c UL us - Recognized (OL) | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Electrical connector system | Plug | ||
| Rating class as per EN 60034-1 | S1 | ||
| Conforms to standard | IEC 60034 | ||
| Storage temperature | -20 °C ... 70 °C |
| Mean time to dangerous failure (MTTFd), subcomponent | 874 years, rotor position sensor | ||
| PFHd, subcomponent | 1.3 x 10E-8, rotor position sensor | ||
| Safety Integrity Level (SIL), subcomponent | SIL 2, rotor position sensor SILCL 2, rotor position sensor | ||
| Rotor pos. encoder, typ. res. | 15 bit | ||
| Rotor position sensor, encoder measuring principle | Optical | ||
| Rotor position sensor | Absolute multi-turn safety encoder | ||
| Permissible axial shaft load | 72 N | ||
| Total mass moment of inertia of output | 1,93 kgcm² | ||
| Phase-phase winding resistance | 9 Ohm | ||
| Motor constant | 1,524 Nm/A | ||
| Nominal motor current | 2,1 A | ||
| Nominal power rating of motor | 1.000 W | ||
| Nominal rotary speed | 3.000 rpm | ||
| Nominal torque | 3,2 Nm | ||
| Number of pole pairs | 3 | ||
| Nominal voltage DC | 565 V | ||
| CE mark (see declaration of conformity) | To EU EMC Directive To EU Low Voltage Directive | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Note on materials | RoHS-compliant | ||
| Degree of protection | IP21 | ||
| Insulation protection class | F | ||
| Relative air humidity | 0 - 90% | ||
| Ambient temperature | -10 °C ... 40 °C |
