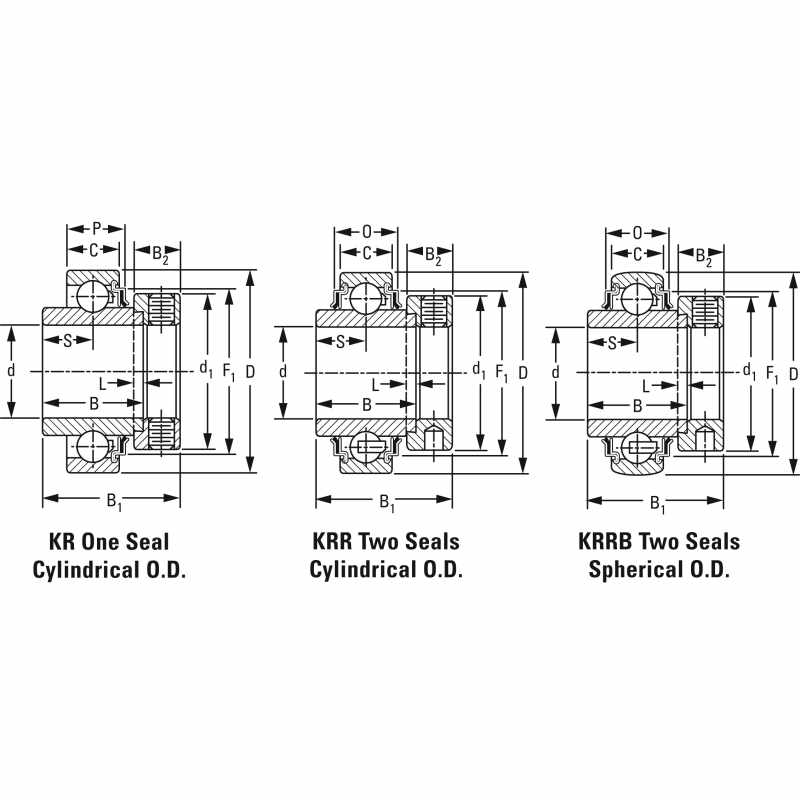

| Outside Diameter D | 72 | mm | |
| Outside Ring Width C | 17 | mm | |
| Center of Bearing from End S | 18.85 | mm | |
| Number of Set Screws | 2 | ||
| Dimension d1 | 54 | mm | |
| Dimension B2 | 17.10 | mm |
| Inner Ring Width B | 37.70 | mm | |
| Radius r | 0.60 | mm | |
| Set Screw Size | 3/8-16 | ||
| Angle between Set Screws | 90 º | ||
| Dimension B1 | 51.20 | mm |
| Manufacturing Part Number | 1107KRR + COL | ||
| Bore Type | Cylindrical bore | ||
| Material | Bearing Steel | ||
| O.D. Type | Cylindrical OD | ||
| Sub Series | 1..KRR | ||
| Weight | 0.20 | Kg |
| Shaft Size d | 1 7/16 in | ||
| Bearing Type | Ball Bearing | ||
| Lubrication Type | Non-Relubricatable | ||
| Series | Industrial | ||
| Seal Type | Shroud Seal |
