| Type | can be assembled into blocks | ||
| mounting orientation | any | ||

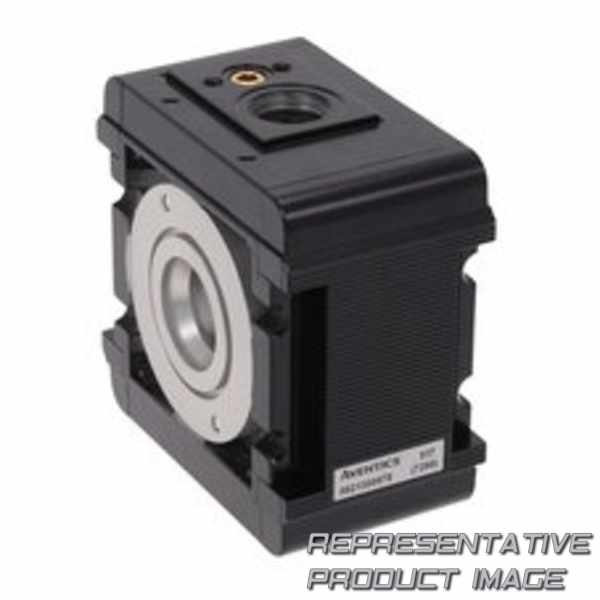

| Version | distributor 2x | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 60 °c | ||
| nominal flow qn 1 to 2 | 25000 l/min | ||
| nominal flow 1 ▶ 5 | 10000 l/min | ||
| Housing Material | die-cast aluminum |
| parts | distributor | ||
| port | g 1 | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| nominal flow 1 ▶ 3 | 10000 l/min | ||
| Weight | 0.95 kg |
