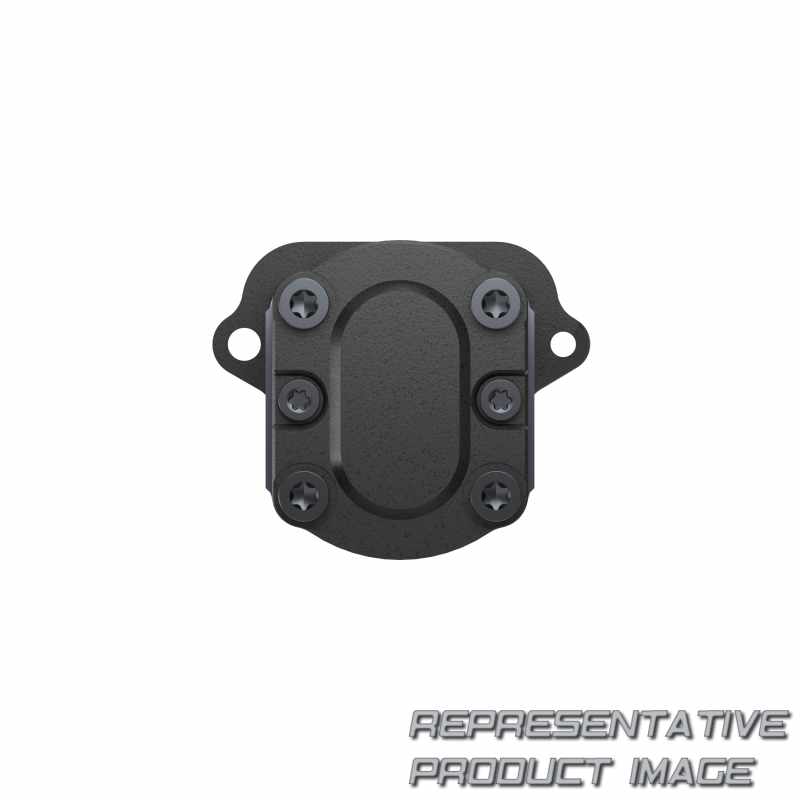

| Rear cover | Flow control valve residual flow, int. | ||
| Port connection pump unit 2 | Non-standard version | ||
| Version | Phosphated, pinned | ||
| Model pump unit 2 | Model F (4 ... 28 cm³/rev) | ||
| function | Pump | ||
| Noise level | Standard noise level | ||

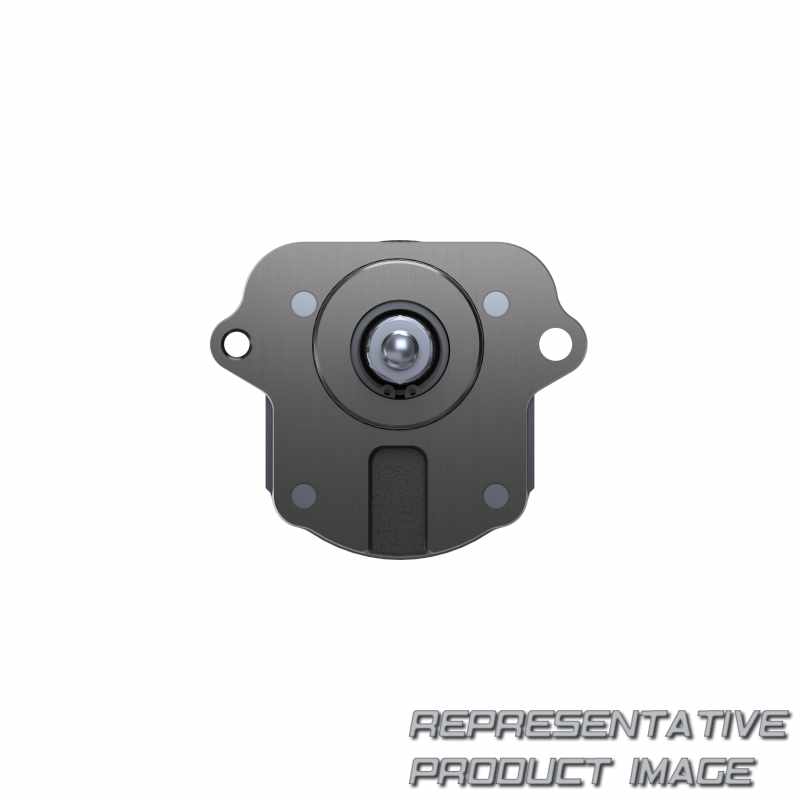

| Front cover | Non-standard version | ||
| Drive shaft | Conical 1:8 | ||
| Max. intermittent pressure pump unit 2 | 190 bar | ||
| Size pump unit 2 | 11 cm³/rev | ||
| Max. flow PU2 | 33.0 l/min |
| Sealing Material | NBR, WDR in FKM | ||
| port connection | Metric thread to ISO 6149, O-ring | ||
| Series | Bearing diameter Ø 18mm | ||
| model | Model F (4 ... 28 cm³/rev) | ||

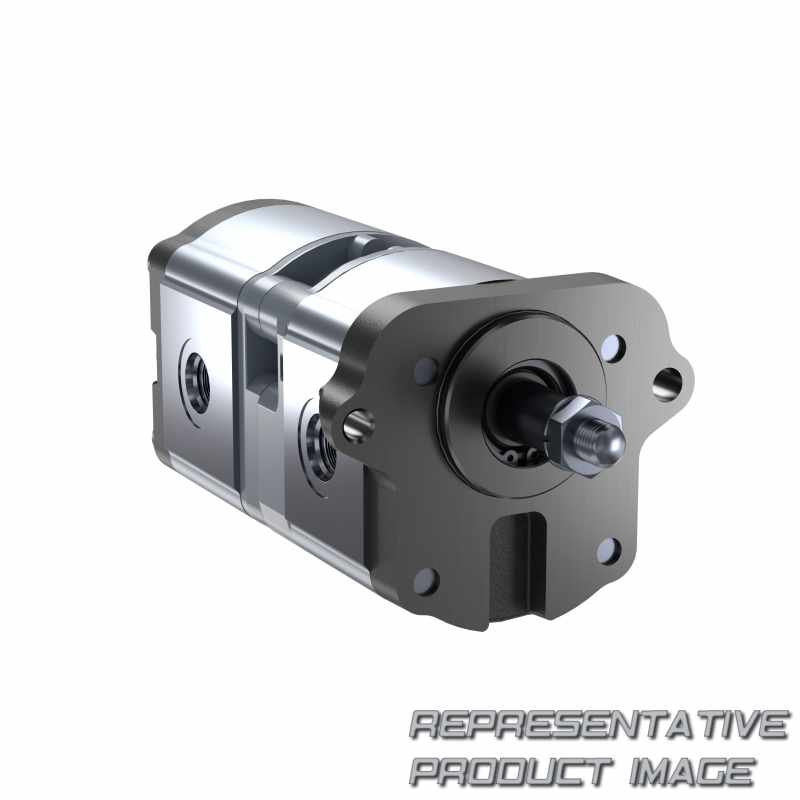

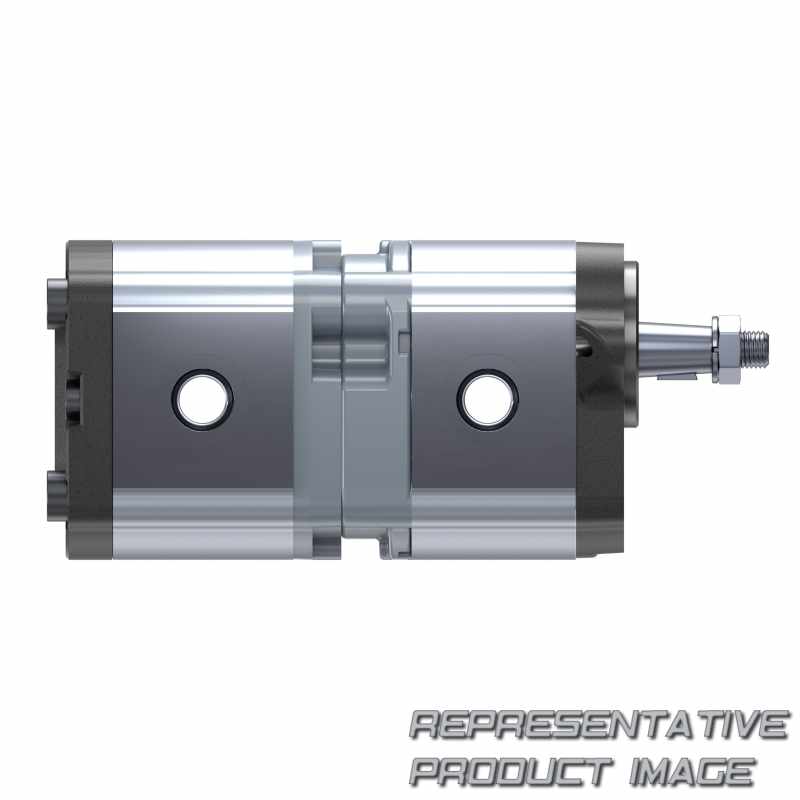

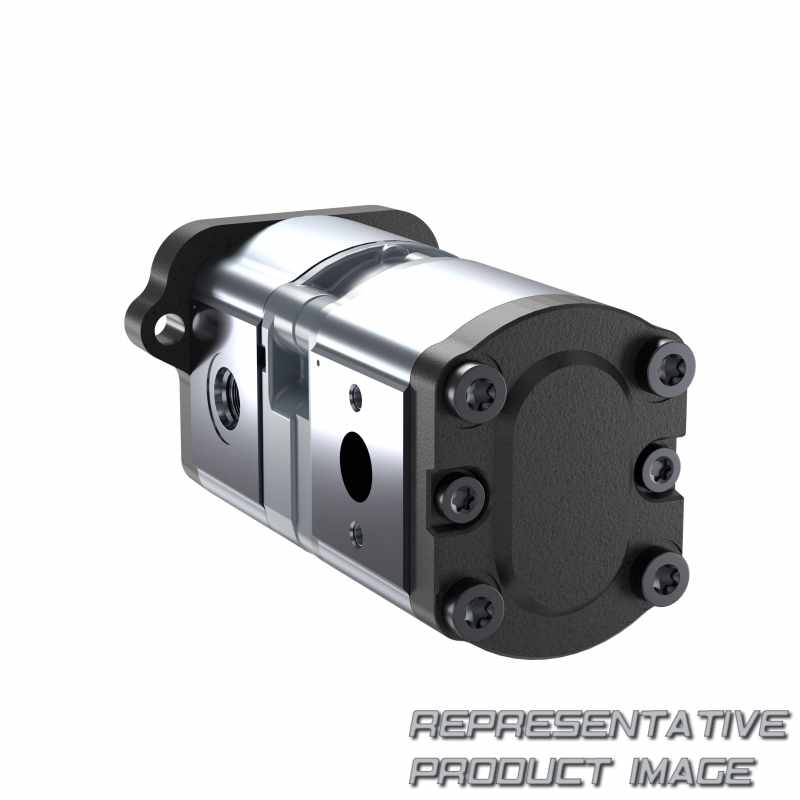

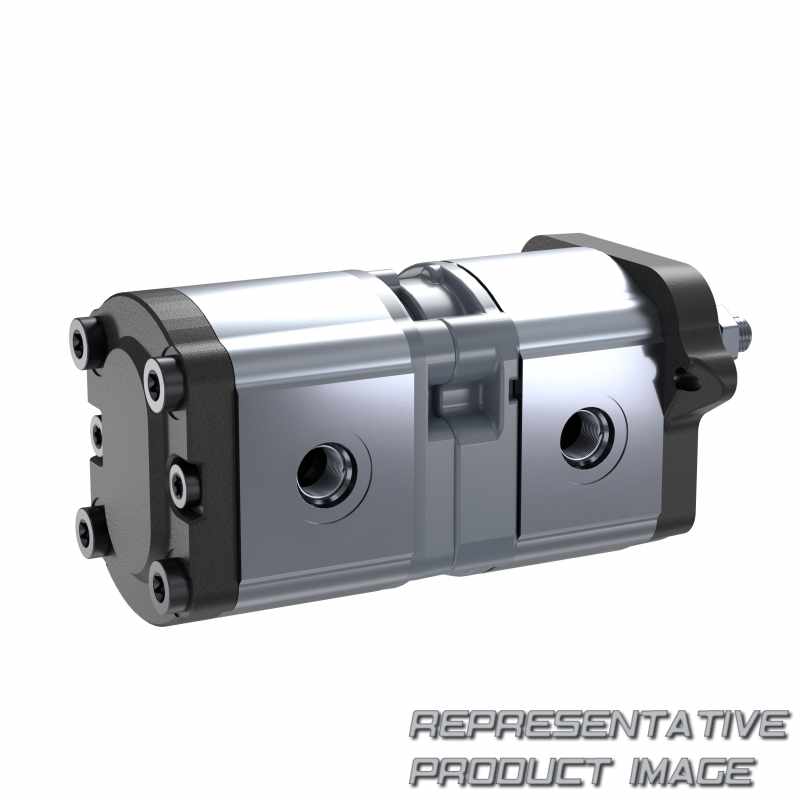

| product | External gear unit | ||
| Housing Material | Aluminum | ||
| Direction of rotation | anti clockwise rotation | ||
| Maximum rotational speed | 3000 rpm | ||
| Max. intermittent pressure pump unit 1 | 190 bar | ||
| Nominal size | 8 cm³/rev |
