| pumps | open circuit piston pump | ||
| displacement | 074 : 73,7 cm3/r [4.50 in3/r] | ||
| front mounting & input shaft | 01 : 4 bolt c (sae j744-127-4) with 31.8 [1.25] dia straight keyed shaft (key included), 56.0 [2.20] shaft extension | ||
| drain port size & location | 1 : .750-16 unf-2b sae o-ring port - bottom (top plugged) | ||
| controller type | a : pressure compensator | ||
| flow comp, ic cont. / unload vlv standby | 00 : no flow compensation setting or unload valve standby | ||
| control special features | 00 : no control special features | ||
| auxiliary mounting & output shaft | 00 : no auxiliary mounting or output shaft | ||
| special features | ae : q250 valve plate, no case to inlet check valve | ||
| customer &/or unit identification | 0 : none - mark assembly number, complete model code and build date code on plate |

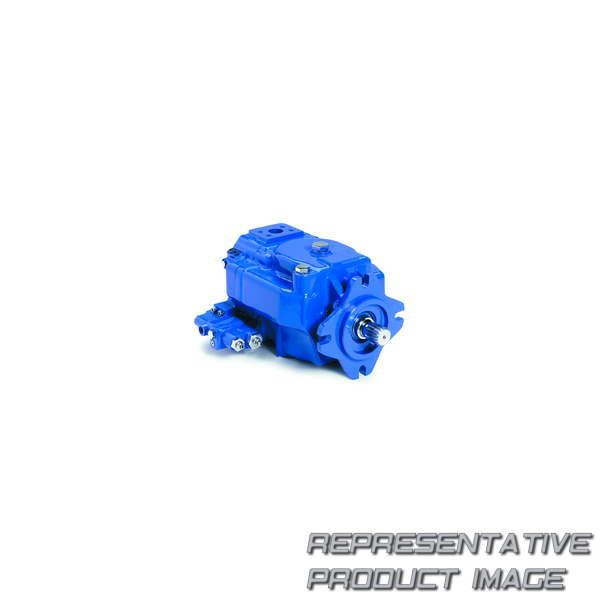

| code title | pvh : vickers pressure compensated/pressure flow compensated open circuit piston pump | ||
| input shaft rotation | r : right-hand rotation (cw) right side suction port, left side pressure port | ||
| main ports size & location | ab : side ports; suction - 2.000 sae 4-bolt split flange port standard pressure series (code 61) with m12 x 1.75 threads; pressure - 1.000 sae 4-bolt split flange port standard pressure series (code 61) with m10 x 1.50 threads | ||
| diagnostic pressure port | 0 : no diagnostic pressure port | ||
| pressure compensator setting | 25 : 246-254 bar [3568-3684 lbf/in2] | ||
| torque sensing / other compensation | 00 : no torque sensing setting or other compensation | ||
| maximum displacement option | 2 : adjustable maximum displacement (set at maximum) | ||
| shaft seals | 1 : single, one-way shaft seal, fluorocarbon | ||
| paint | 01 : blue primer | ||
| design code | a : first design |
