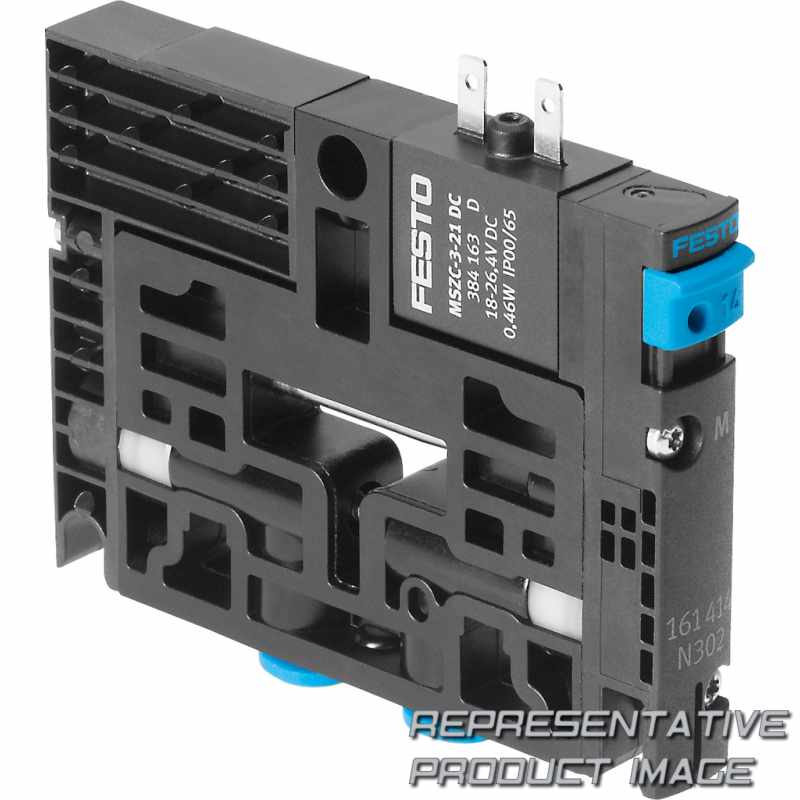

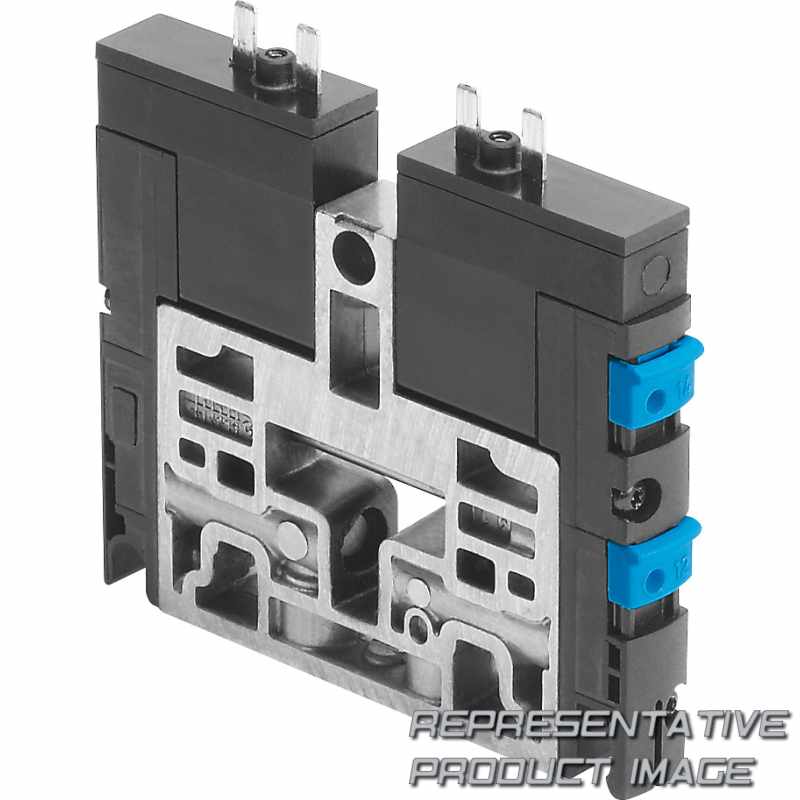

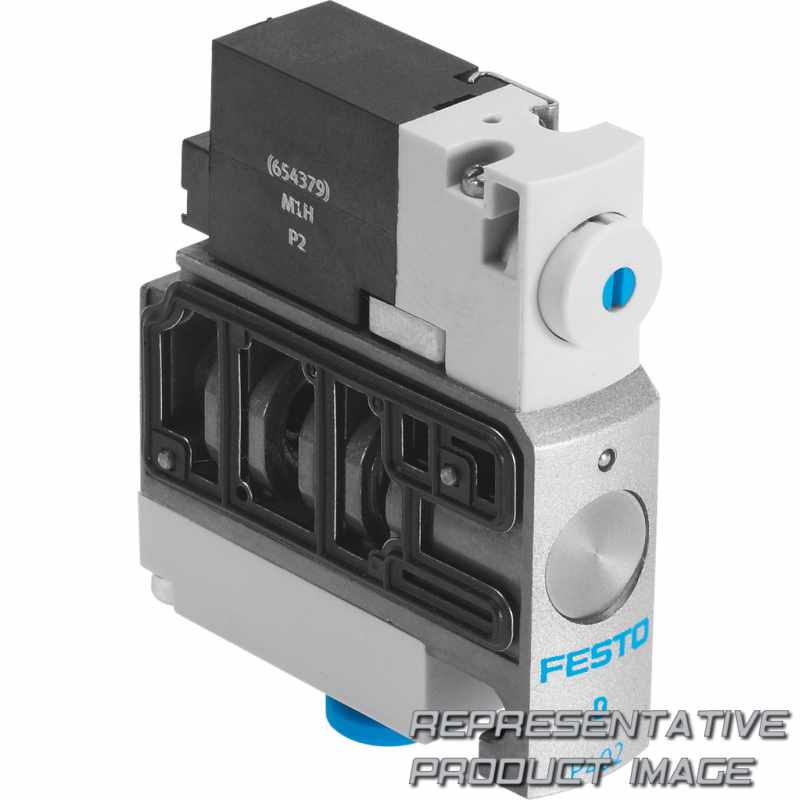

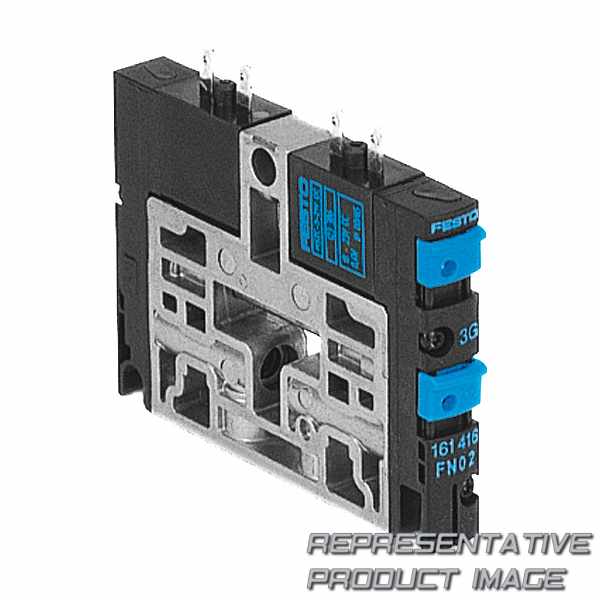

FESTO 18210 valve terminal

Name: 18210 FESTO
Brand: FESTO
SKU: 727325-en-eur
Price: 873.92 EUR
Availability: SoldOut

10P-14-4A-AZ-R-Z-4M+PT

873.92 €

Limited stock only available on quotation

Specifications

Size	14
Operating Pressure	-0,9 bar ... 10 bar

Actuation Type	Electric
Pneumatic connection	Common line

Valve function		2x2/2-way, monostable, closed 2x2/2-way, open/closed, monostable 2x3/2-way, monostable, closed 2x3/2-way, open, monostable 2x3/2-way, open/closed, monostable 5/2 double solenoid 5/2-way, monostable Vacuum generator Vacuum generator + 2/2-way, closed, monostable
Max. standard nominal flow rate		800 l/min at 14 mm
Operating pressure		-0,9 bar ... 10 bar
Max. number of valve positions		8
Electrical I/O system		yes
Degree of protection		IP65
KC mark		KC-EMV
Explosion protection certification outside the EU		NEC 500 Class I, Div. 2
Explosion ignition protection type for gas		Ex nA IIC T4 X Gc
Nominal size		6 mm
Sealing principle		Soft
Design		Piston gate valve
Pilot air supply		External Internal
Signal status display		LED
Pilot pressure		3 bar ... 80 bar
Nominal operating voltage DC		24 V
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		1 - Low corrosion stress 2 - Moderate corrosion stress
Media temperature		-5 °C ... 50 °C
Pilot exhaust port 82/84		Common line
Pneumatic connection, port 2		G1/8
Pneumatic connection, port 4		G1/8

Valve size		14 mm
pneumatic working port		G1/8 QS-6 QS-8 QS-1/8 QS-1/4
Electrical control		AS-Interface CPI installation system Individual connection Fieldbus Multi-pin plug
Max. number of pressure zones		2
Ambient temperature		-5 °C ... 50 °C
Approval		RCM trademark c UL us - Recognized (OL)
CE mark (see declaration of conformity)		To EU EMC Directive To EU Explosion Protection Directive (ATEX)
ATEX category gas		II 3G
Explosion ambient temperature		-5°C <= Ta <= +50°C
Type of actuation		Electric
Terminal type		10
Max. number of valve functions		16
Valve terminal structure		Fixed grid
Note on operating pressure		0 - 0.8 MPa with ext. pilot air 0 - 8 bar with external pilot air
Suitability for vacuum		yes
Explosion protection		Zone 2 (ATEX) Class I, Div. 2 (US)
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Storage temperature		-20 °C ... 40 °C
Pilot air port 12/14		Common line
Pneumatic connection, port 1		Common line
Pneumatic connection, port 3		Common line
Note on materials		RoHS-compliant
